Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

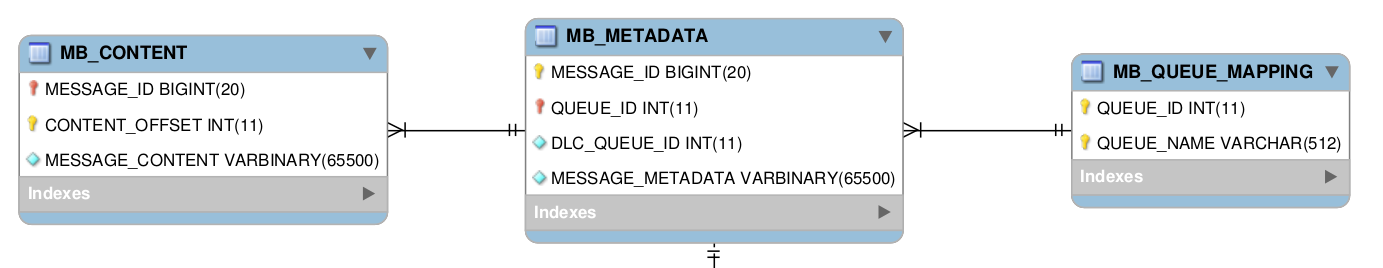

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.

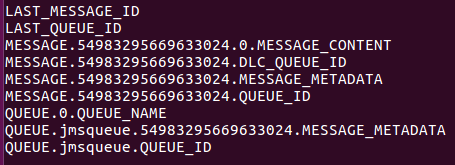

Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : +94 777577706

_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

sumedha rubasinghe
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Wishmitha Mendis
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : +94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Sajith Kariyawasam
Hi Wishmitha,

As per ActiveMQ [1] it says "The LevelDB store has been deprecated and is no longer supported or recommended for use. The recommended store is KahaDB" ... Are we aware of the reason LevelDB is not recommending in ActiveMQ? In that case are we on the correct path to use LevelDB ?


On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Sajith Kariyawasam
Associate Tech Lead
WSO2 Inc.; http://wso2.com
Committer and PMC member, Apache Stratos
AMIE (SL)
Mobile: 0772269575

_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Asanka Abeyweera
In reply to this post by Wishmitha Mendis
Hi Wishmitha,
  1. How are we going to support HA deployment with LevelDB? Are we going to use a network file system or replicate data?
  2. If we wanted to get a set of message matching a given queue ID, do we have to traverse all messages to get that? In RDBMS this is easier to do with a where clause.
  3. What happens if we insert data while traversing?
  4. It seems "only a single process (possibly multi-threaded) can access a particular database at a time"[1] in LevelDB. Will this be a bottleneck when we need to access the DB concurrently?
  5. How are the transactions handled in LevelDB? When implementing distributed transactions feature we required row level locking instead of table level locking. Does LevelDB support that?

On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Wishmitha Mendis
In reply to this post by Sajith Kariyawasam
Hi Sajith,

Yes we are aware of the fact that ActiveMQ does not recommend LevelDB store currently. That is mainly because ActiveMQ is more focused on improving KahaDB which is the default database of their broker [1]. And they introduced LevelDB store mainly to increase the performances of the broker [2]. As mentioned in [2], LevelDB store can provide certain advantages over current KahaDB store of ActiveMQ. And there can be certain trade offs in using LevelDB as a broker store. Our primary objective is identifying those trade offs and selecting the optimal file based data store by PoC with this.

[1]
http://activemq.2283324.n4.nabble.com/DISCUSS-LevelDB-deprecation-td4719227.html
[2] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,


On Tue, Aug 15, 2017 at 10:59 AM, Sajith Kariyawasam <[hidden email]> wrote:
Hi Wishmitha,

As per ActiveMQ [1] it says "The LevelDB store has been deprecated and is no longer supported or recommended for use. The recommended store is KahaDB" ... Are we aware of the reason LevelDB is not recommending in ActiveMQ? In that case are we on the correct path to use LevelDB ?


On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Sajith Kariyawasam
Associate Tech Lead
WSO2 Inc.; http://wso2.com
Committer and PMC member, Apache Stratos
AMIE (SL)
Mobile: 0772269575

_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : +94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Wishmitha Mendis
In reply to this post by Asanka Abeyweera
Hi Asanka,

1. We can initially use a Network File System as you mentioned for HA. However data replication in LevelDB is used in ActiveMQ replicated store. [1]

2. Yes, the iterator should traverse all the related keys to get message data. This is why the key schema is designed in a such way that all the messages in a queue are stored successively to reduce the traversing time. And as you said it is much more complex than the RDBMS as the data cannot be retrieved by simply executing a query. However, LevelDB can still provide much faster data retrieval rates than RDBMS due to its high performances. Hence, even though the data retrieving operation is complex, it is not a much of an overhead when it comes to overall performances.

(Additional : Most of the RDBMS engines use file based stores underneath. As an example, LevelDB is used as a database engine in MariaDB. [2] Hence, even when executing a query in RDBMS, these kind of traversing operations may occur underneath.)

3. Data cannot be inserted while traversing. Actually traversing through the keys is done by an iterator which should be eventually closed after the operation is completed. A sample code is represented below. [3]

DBIterator iterator = db.iterator();
try {
  for(iterator.seekToFirst(); iterator.hasNext(); iterator.next()) {
    String key = asString(iterator.peekNext().getKey());
    String value = asString(iterator.peekNext().getValue());
    System.out.println(key+" = "+value);
  }
} finally {
  // Make sure you close the iterator to avoid resource leaks.
  iterator.close();
}
These iterators are mainly used in methods such as getMetaDataList() and deleteMessages() in the implementation. The iterator should be closed in those methods, as displayed in the above code.

4. Yes this will be a performance limitation. The throughput get reasonably low when publishing/retrieving messages in multi-threaded environment. Even though LevelDB is capable of providing higher throughput than RDBMS even in a multi-threaded environment according to the test results, that can be a bottleneck in concurrent access of DB. Main purpose of this PoC is actually develop a generic key schema, so that we can switch between and select the optimal file based store for the message broker.

5. LevelDB does not have an inbuilt transaction support. Therefore transactions should implemented as a external layer within the application. Currently I am working on this and exploring how the transactions are implemented in ActiveMQ LevelDB store. [4] I will post a separate thread on LevelDB transactions.


[1] http://activemq.apache.org/replicated-leveldb-store.html
[2] https://mariadb.com/kb/en/mariadb/leveldb/
[3] https://github.com/fusesource/leveldbjni
[4] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

On Tue, Aug 15, 2017 at 11:21 AM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,
  1. How are we going to support HA deployment with LevelDB? Are we going to use a network file system or replicate data?
  2. If we wanted to get a set of message matching a given queue ID, do we have to traverse all messages to get that? In RDBMS this is easier to do with a where clause.
  3. What happens if we insert data while traversing?
  4. It seems "only a single process (possibly multi-threaded) can access a particular database at a time"[1] in LevelDB. Will this be a bottleneck when we need to access the DB concurrently?
  5. How are the transactions handled in LevelDB? When implementing distributed transactions feature we required row level locking instead of table level locking. Does LevelDB support that?

On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : +94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Asanka Abeyweera
Hi Wishmitha,

On Tue, Aug 15, 2017 at 5:34 PM, Wishmitha Mendis <[hidden email]> wrote:
Hi Asanka,

1. We can initially use a Network File System as you mentioned for HA. However data replication in LevelDB is used in ActiveMQ replicated store. [1]

Then It is better to run the performance test with a NFS to really compare the results.


2. Yes, the iterator should traverse all the related keys to get message data. This is why the key schema is designed in a such way that all the messages in a queue are stored successively to reduce the traversing time. And as you said it is much more complex than the RDBMS as the data cannot be retrieved by simply executing a query. However, LevelDB can still provide much faster data retrieval rates than RDBMS due to its high performances. Hence, even though the data retrieving operation is complex, it is not a much of an overhead when it comes to overall performances.

What happens if we have lot of messages for a queue/queues which is stored before the interested queue. Shouldn't we traverse until we find the interested queue. If my understanding is correct that will result in consuming a considerable amount of resources (CPU, bancdwith, etc). RDBMS get around this by maintaining indexes. Do we have something similar in leveldb?


(Additional : Most of the RDBMS engines use file based stores underneath. As an example, LevelDB is used as a database engine in MariaDB. [2] Hence, even when executing a query in RDBMS, these kind of traversing operations may occur underneath.)

3. Data cannot be inserted while traversing. Actually traversing through the keys is done by an iterator which should be eventually closed after the operation is completed. A sample code is represented below. [3]

DBIterator iterator = db.iterator();
try {
  for(iterator.seekToFirst(); iterator.hasNext(); iterator.next()) {
    String key = asString(iterator.peekNext().getKey());
    String value = asString(iterator.peekNext().getValue());
    System.out.println(key+" = "+value);
  }
} finally {
  // Make sure you close the iterator to avoid resource leaks.
  iterator.close();
}
These iterators are mainly used in methods such as getMetaDataList() and deleteMessages() in the implementation. The iterator should be closed in those methods, as displayed in the above code.

Isn't that a bottleneck when there are concurrent consumers and publishers? Data writing threads will have to wait until the data reading thread is done which can result in lower performance numbers when there are multiple queues with multiple consumers and publishers.


4. Yes this will be a performance limitation. The throughput get reasonably low when publishing/retrieving messages in multi-threaded environment. Even though LevelDB is capable of providing higher throughput than RDBMS even in a multi-threaded environment according to the test results, that can be a bottleneck in concurrent access of DB. Main purpose of this PoC is actually develop a generic key schema, so that we can switch between and select the optimal file based store for the message broker.

5. LevelDB does not have an inbuilt transaction support. Therefore transactions should implemented as a external layer within the application. Currently I am working on this and exploring how the transactions are implemented in ActiveMQ LevelDB store. [4] I will post a separate thread on LevelDB transactions.

Maybe before implementing a transaction layer, we should do a proper performance test and decide on the path forward.

WDYT?


On Tue, Aug 15, 2017 at 11:21 AM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,
  1. How are we going to support HA deployment with LevelDB? Are we going to use a network file system or replicate data?
  2. If we wanted to get a set of message matching a given queue ID, do we have to traverse all messages to get that? In RDBMS this is easier to do with a where clause.
  3. What happens if we insert data while traversing?
  4. It seems "only a single process (possibly multi-threaded) can access a particular database at a time"[1] in LevelDB. Will this be a bottleneck when we need to access the DB concurrently?
  5. How are the transactions handled in LevelDB? When implementing distributed transactions feature we required row level locking instead of table level locking. Does LevelDB support that?

On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706





--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: +94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Pamod Sylvester
I suppose we just need to adhere to the scheme for indexing which is followed by on disk key-value dbs.

Based on [1] MariaDB uses levelDB for it's internal storage engine. And also they've explained how indexing is handled in levelDB for it's use.

Also i believe we don't need to stick with levelDB, we just need to evaluate the possibilities of integrating with a key-value paired db as it's being used by most of the broker vendors due to it's performance. The goal would be to eventually develop a storage engine which will be tuned specific to serve brokering domains.  We could also adopt some of the techniques used by Kafka to allow fast message transmission to it's consumers. AFAIK they leverage the use of java FileChannel transferTo API to feed the file's data directly to it's consumers, instead of reading the byte data to the application.

Also given that transactions are vital for a broker, IMO it would be better to do a performance evaluation after implementing transactions. Given that it's a part of the main part of the feature, we cannot omit transactional commits.

On Wed, Aug 16, 2017 at 12:08 PM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,

On Tue, Aug 15, 2017 at 5:34 PM, Wishmitha Mendis <[hidden email]> wrote:
Hi Asanka,

1. We can initially use a Network File System as you mentioned for HA. However data replication in LevelDB is used in ActiveMQ replicated store. [1]

Then It is better to run the performance test with a NFS to really compare the results.


2. Yes, the iterator should traverse all the related keys to get message data. This is why the key schema is designed in a such way that all the messages in a queue are stored successively to reduce the traversing time. And as you said it is much more complex than the RDBMS as the data cannot be retrieved by simply executing a query. However, LevelDB can still provide much faster data retrieval rates than RDBMS due to its high performances. Hence, even though the data retrieving operation is complex, it is not a much of an overhead when it comes to overall performances.

What happens if we have lot of messages for a queue/queues which is stored before the interested queue. Shouldn't we traverse until we find the interested queue. If my understanding is correct that will result in consuming a considerable amount of resources (CPU, bancdwith, etc). RDBMS get around this by maintaining indexes. Do we have something similar in leveldb?


(Additional : Most of the RDBMS engines use file based stores underneath. As an example, LevelDB is used as a database engine in MariaDB. [2] Hence, even when executing a query in RDBMS, these kind of traversing operations may occur underneath.)

3. Data cannot be inserted while traversing. Actually traversing through the keys is done by an iterator which should be eventually closed after the operation is completed. A sample code is represented below. [3]

DBIterator iterator = db.iterator();
try {
  for(iterator.seekToFirst(); iterator.hasNext(); iterator.next()) {
    String key = asString(iterator.peekNext().getKey());
    String value = asString(iterator.peekNext().getValue());
    System.out.println(key+" = "+value);
  }
} finally {
  // Make sure you close the iterator to avoid resource leaks.
  iterator.close();
}
These iterators are mainly used in methods such as getMetaDataList() and deleteMessages() in the implementation. The iterator should be closed in those methods, as displayed in the above code.

Isn't that a bottleneck when there are concurrent consumers and publishers? Data writing threads will have to wait until the data reading thread is done which can result in lower performance numbers when there are multiple queues with multiple consumers and publishers.


4. Yes this will be a performance limitation. The throughput get reasonably low when publishing/retrieving messages in multi-threaded environment. Even though LevelDB is capable of providing higher throughput than RDBMS even in a multi-threaded environment according to the test results, that can be a bottleneck in concurrent access of DB. Main purpose of this PoC is actually develop a generic key schema, so that we can switch between and select the optimal file based store for the message broker.

5. LevelDB does not have an inbuilt transaction support. Therefore transactions should implemented as a external layer within the application. Currently I am working on this and exploring how the transactions are implemented in ActiveMQ LevelDB store. [4] I will post a separate thread on LevelDB transactions.

Maybe before implementing a transaction layer, we should do a proper performance test and decide on the path forward.

WDYT?


On Tue, Aug 15, 2017 at 11:21 AM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,
  1. How are we going to support HA deployment with LevelDB? Are we going to use a network file system or replicate data?
  2. If we wanted to get a set of message matching a given queue ID, do we have to traverse all messages to get that? In RDBMS this is easier to do with a where clause.
  3. What happens if we insert data while traversing?
  4. It seems "only a single process (possibly multi-threaded) can access a particular database at a time"[1] in LevelDB. Will this be a bottleneck when we need to access the DB concurrently?
  5. How are the transactions handled in LevelDB? When implementing distributed transactions feature we required row level locking instead of table level locking. Does LevelDB support that?

On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706





--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:071%20222%208648" value="+94712228648" target="_blank">+94 712228648





--
Pamod Sylvester
WSO2 Inc.; http://wso2.com
cell: +94 77 7779495

_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Asanka Abeyweera
Hi Pamod,

I also agree on the importance of the implementing a transaction mechanism. My concern is with key-value DB, we are implementing some capabilities (indexing, transactions, etc) which come out of the box with RDBMS. If we don't achieve a considerable amount of gain in performance, it will be a waste of time spending time on implementing transactions on top of LevelDB. Therefore I think it is better first to see if we actually get an improvement and then proceed.

On the other hand, if MariaDB has already implemented these capabilities on top of LevelDB, Isn't it better to use MariaDB?

On Wed, Aug 16, 2017 at 2:59 PM, Pamod Sylvester <[hidden email]> wrote:
I suppose we just need to adhere to the scheme for indexing which is followed by on disk key-value dbs.

Based on [1] MariaDB uses levelDB for it's internal storage engine. And also they've explained how indexing is handled in levelDB for it's use.

Also i believe we don't need to stick with levelDB, we just need to evaluate the possibilities of integrating with a key-value paired db as it's being used by most of the broker vendors due to it's performance. The goal would be to eventually develop a storage engine which will be tuned specific to serve brokering domains.  We could also adopt some of the techniques used by Kafka to allow fast message transmission to it's consumers. AFAIK they leverage the use of java FileChannel transferTo API to feed the file's data directly to it's consumers, instead of reading the byte data to the application.

Also given that transactions are vital for a broker, IMO it would be better to do a performance evaluation after implementing transactions. Given that it's a part of the main part of the feature, we cannot omit transactional commits.

On Wed, Aug 16, 2017 at 12:08 PM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,

On Tue, Aug 15, 2017 at 5:34 PM, Wishmitha Mendis <[hidden email]> wrote:
Hi Asanka,

1. We can initially use a Network File System as you mentioned for HA. However data replication in LevelDB is used in ActiveMQ replicated store. [1]

Then It is better to run the performance test with a NFS to really compare the results.


2. Yes, the iterator should traverse all the related keys to get message data. This is why the key schema is designed in a such way that all the messages in a queue are stored successively to reduce the traversing time. And as you said it is much more complex than the RDBMS as the data cannot be retrieved by simply executing a query. However, LevelDB can still provide much faster data retrieval rates than RDBMS due to its high performances. Hence, even though the data retrieving operation is complex, it is not a much of an overhead when it comes to overall performances.

What happens if we have lot of messages for a queue/queues which is stored before the interested queue. Shouldn't we traverse until we find the interested queue. If my understanding is correct that will result in consuming a considerable amount of resources (CPU, bancdwith, etc). RDBMS get around this by maintaining indexes. Do we have something similar in leveldb?


(Additional : Most of the RDBMS engines use file based stores underneath. As an example, LevelDB is used as a database engine in MariaDB. [2] Hence, even when executing a query in RDBMS, these kind of traversing operations may occur underneath.)

3. Data cannot be inserted while traversing. Actually traversing through the keys is done by an iterator which should be eventually closed after the operation is completed. A sample code is represented below. [3]

DBIterator iterator = db.iterator();
try {
  for(iterator.seekToFirst(); iterator.hasNext(); iterator.next()) {
    String key = asString(iterator.peekNext().getKey());
    String value = asString(iterator.peekNext().getValue());
    System.out.println(key+" = "+value);
  }
} finally {
  // Make sure you close the iterator to avoid resource leaks.
  iterator.close();
}
These iterators are mainly used in methods such as getMetaDataList() and deleteMessages() in the implementation. The iterator should be closed in those methods, as displayed in the above code.

Isn't that a bottleneck when there are concurrent consumers and publishers? Data writing threads will have to wait until the data reading thread is done which can result in lower performance numbers when there are multiple queues with multiple consumers and publishers.


4. Yes this will be a performance limitation. The throughput get reasonably low when publishing/retrieving messages in multi-threaded environment. Even though LevelDB is capable of providing higher throughput than RDBMS even in a multi-threaded environment according to the test results, that can be a bottleneck in concurrent access of DB. Main purpose of this PoC is actually develop a generic key schema, so that we can switch between and select the optimal file based store for the message broker.

5. LevelDB does not have an inbuilt transaction support. Therefore transactions should implemented as a external layer within the application. Currently I am working on this and exploring how the transactions are implemented in ActiveMQ LevelDB store. [4] I will post a separate thread on LevelDB transactions.

Maybe before implementing a transaction layer, we should do a proper performance test and decide on the path forward.

WDYT?


On Tue, Aug 15, 2017 at 11:21 AM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,
  1. How are we going to support HA deployment with LevelDB? Are we going to use a network file system or replicate data?
  2. If we wanted to get a set of message matching a given queue ID, do we have to traverse all messages to get that? In RDBMS this is easier to do with a where clause.
  3. What happens if we insert data while traversing?
  4. It seems "only a single process (possibly multi-threaded) can access a particular database at a time"[1] in LevelDB. Will this be a bottleneck when we need to access the DB concurrently?
  5. How are the transactions handled in LevelDB? When implementing distributed transactions feature we required row level locking instead of table level locking. Does LevelDB support that?

On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706





--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:071%20222%208648" value="+94712228648" target="_blank">+94 712228648





--
Pamod Sylvester
WSO2 Inc.; http://wso2.com
cell: <a href="tel:+94%2077%20777%209495" value="+94777779495" target="_blank">+94 77 7779495



--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Pamod Sylvester
Hi Asanka,

I also agree on the importance of the implementing a transaction mechanism. My concern is with key-value DB, we are implementing some capabilities (indexing, transactions, etc) which come out of the box with RDBMS. If we don't achieve a considerable amount of gain in performance, it will be a waste of time spending time on implementing transactions on top of LevelDB. Therefore I think it is better first to see if we actually get an improvement and then proceed.

With transactions the performance numbers will change and comparing RDBMS (who has native transaction support) and levelDB without transactions would not be a good comparison IMO :)

Also the initial motivation for file based approach would be it's usage over many different open source broker vendors who has done some amount of research between RDBMS and file based databases for it's performance. So we could go ahead with an optimistic assumption that the performance with transactions support would not degrade.

However, to elaborate the point mentioned earlier. LevelDB is not the chosen database for this, by this approach we're trying to take more control over the storage so that we could provide better performance optimizations. I.e if we have move to file bases systems we have control over the disk operations and we could even consider improving the performance to an extent to allow consumers directly talking to the stream of data in the file similar to what Kafka did.

On the other hand, if MariaDB has already implemented these capabilities on top of LevelDB, Isn't it better to use MariaDB?

The purpose of this is to optimize a storage which will be more suited for a broker. MariaDB serves as a generic DB which will be a proven example of usage of levelDB for general db usage (transactions,xa etc).

Thanks,
Pamod

On Wed, Aug 16, 2017 at 4:27 PM, Asanka Abeyweera <[hidden email]> wrote:
Hi Pamod,

I also agree on the importance of the implementing a transaction mechanism. My concern is with key-value DB, we are implementing some capabilities (indexing, transactions, etc) which come out of the box with RDBMS. If we don't achieve a considerable amount of gain in performance, it will be a waste of time spending time on implementing transactions on top of LevelDB. Therefore I think it is better first to see if we actually get an improvement and then proceed.

On the other hand, if MariaDB has already implemented these capabilities on top of LevelDB, Isn't it better to use MariaDB?

On Wed, Aug 16, 2017 at 2:59 PM, Pamod Sylvester <[hidden email]> wrote:
I suppose we just need to adhere to the scheme for indexing which is followed by on disk key-value dbs.

Based on [1] MariaDB uses levelDB for it's internal storage engine. And also they've explained how indexing is handled in levelDB for it's use.

Also i believe we don't need to stick with levelDB, we just need to evaluate the possibilities of integrating with a key-value paired db as it's being used by most of the broker vendors due to it's performance. The goal would be to eventually develop a storage engine which will be tuned specific to serve brokering domains.  We could also adopt some of the techniques used by Kafka to allow fast message transmission to it's consumers. AFAIK they leverage the use of java FileChannel transferTo API to feed the file's data directly to it's consumers, instead of reading the byte data to the application.

Also given that transactions are vital for a broker, IMO it would be better to do a performance evaluation after implementing transactions. Given that it's a part of the main part of the feature, we cannot omit transactional commits.

On Wed, Aug 16, 2017 at 12:08 PM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,

On Tue, Aug 15, 2017 at 5:34 PM, Wishmitha Mendis <[hidden email]> wrote:
Hi Asanka,

1. We can initially use a Network File System as you mentioned for HA. However data replication in LevelDB is used in ActiveMQ replicated store. [1]

Then It is better to run the performance test with a NFS to really compare the results.


2. Yes, the iterator should traverse all the related keys to get message data. This is why the key schema is designed in a such way that all the messages in a queue are stored successively to reduce the traversing time. And as you said it is much more complex than the RDBMS as the data cannot be retrieved by simply executing a query. However, LevelDB can still provide much faster data retrieval rates than RDBMS due to its high performances. Hence, even though the data retrieving operation is complex, it is not a much of an overhead when it comes to overall performances.

What happens if we have lot of messages for a queue/queues which is stored before the interested queue. Shouldn't we traverse until we find the interested queue. If my understanding is correct that will result in consuming a considerable amount of resources (CPU, bancdwith, etc). RDBMS get around this by maintaining indexes. Do we have something similar in leveldb?


(Additional : Most of the RDBMS engines use file based stores underneath. As an example, LevelDB is used as a database engine in MariaDB. [2] Hence, even when executing a query in RDBMS, these kind of traversing operations may occur underneath.)

3. Data cannot be inserted while traversing. Actually traversing through the keys is done by an iterator which should be eventually closed after the operation is completed. A sample code is represented below. [3]

DBIterator iterator = db.iterator();
try {
  for(iterator.seekToFirst(); iterator.hasNext(); iterator.next()) {
    String key = asString(iterator.peekNext().getKey());
    String value = asString(iterator.peekNext().getValue());
    System.out.println(key+" = "+value);
  }
} finally {
  // Make sure you close the iterator to avoid resource leaks.
  iterator.close();
}
These iterators are mainly used in methods such as getMetaDataList() and deleteMessages() in the implementation. The iterator should be closed in those methods, as displayed in the above code.

Isn't that a bottleneck when there are concurrent consumers and publishers? Data writing threads will have to wait until the data reading thread is done which can result in lower performance numbers when there are multiple queues with multiple consumers and publishers.


4. Yes this will be a performance limitation. The throughput get reasonably low when publishing/retrieving messages in multi-threaded environment. Even though LevelDB is capable of providing higher throughput than RDBMS even in a multi-threaded environment according to the test results, that can be a bottleneck in concurrent access of DB. Main purpose of this PoC is actually develop a generic key schema, so that we can switch between and select the optimal file based store for the message broker.

5. LevelDB does not have an inbuilt transaction support. Therefore transactions should implemented as a external layer within the application. Currently I am working on this and exploring how the transactions are implemented in ActiveMQ LevelDB store. [4] I will post a separate thread on LevelDB transactions.

Maybe before implementing a transaction layer, we should do a proper performance test and decide on the path forward.

WDYT?


On Tue, Aug 15, 2017 at 11:21 AM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,
  1. How are we going to support HA deployment with LevelDB? Are we going to use a network file system or replicate data?
  2. If we wanted to get a set of message matching a given queue ID, do we have to traverse all messages to get that? In RDBMS this is easier to do with a where clause.
  3. What happens if we insert data while traversing?
  4. It seems "only a single process (possibly multi-threaded) can access a particular database at a time"[1] in LevelDB. Will this be a bottleneck when we need to access the DB concurrently?
  5. How are the transactions handled in LevelDB? When implementing distributed transactions feature we required row level locking instead of table level locking. Does LevelDB support that?

On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706





--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:071%20222%208648" value="+94712228648" target="_blank">+94 712228648





--
Pamod Sylvester
WSO2 Inc.; http://wso2.com
cell: <a href="tel:+94%2077%20777%209495" value="+94777779495" target="_blank">+94 77 7779495



--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648





--
Pamod Sylvester
WSO2 Inc.; http://wso2.com
cell: +94 77 7779495

_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Hasitha Hiranya
In reply to this post by Asanka Abeyweera
Hi Asanka and all,

On Wed, Aug 16, 2017 at 12:08 PM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,

On Tue, Aug 15, 2017 at 5:34 PM, Wishmitha Mendis <[hidden email]> wrote:
Hi Asanka,

1. We can initially use a Network File System as you mentioned for HA. However data replication in LevelDB is used in ActiveMQ replicated store. [1]

Then It is better to run the performance test with a NFS to really compare the results.

+1 for this. We have seen ActiveMQ also deliver low performance when we do this.
For distributed brokering scenarios, how ActiveMQ does it is, using broker-to-broker communication [1]. Each broker node has its own file based storage system, and message is routed looking at where the real consumer is.



2. Yes, the iterator should traverse all the related keys to get message data. This is why the key schema is designed in a such way that all the messages in a queue are stored successively to reduce the traversing time. And as you said it is much more complex than the RDBMS as the data cannot be retrieved by simply executing a query. However, LevelDB can still provide much faster data retrieval rates than RDBMS due to its high performances. Hence, even though the data retrieving operation is complex, it is not a much of an overhead when it comes to overall performances.

What happens if we have lot of messages for a queue/queues which is stored before the interested queue. Shouldn't we traverse until we find the interested queue. If my understanding is correct that will result in consuming a considerable amount of resources (CPU, bancdwith, etc). RDBMS get around this by maintaining indexes. Do we have something similar in leveldb?


(Additional : Most of the RDBMS engines use file based stores underneath. As an example, LevelDB is used as a database engine in MariaDB. [2] Hence, even when executing a query in RDBMS, these kind of traversing operations may occur underneath.)

3. Data cannot be inserted while traversing. Actually traversing through the keys is done by an iterator which should be eventually closed after the operation is completed. A sample code is represented below. [3]

DBIterator iterator = db.iterator();
try {
  for(iterator.seekToFirst(); iterator.hasNext(); iterator.next()) {
    String key = asString(iterator.peekNext().getKey());
    String value = asString(iterator.peekNext().getValue());
    System.out.println(key+" = "+value);
  }
} finally {
  // Make sure you close the iterator to avoid resource leaks.
  iterator.close();
}
These iterators are mainly used in methods such as getMetaDataList() and deleteMessages() in the implementation. The iterator should be closed in those methods, as displayed in the above code.

Isn't that a bottleneck when there are concurrent consumers and publishers? Data writing threads will have to wait until the data reading thread is done which can result in lower performance numbers when there are multiple queues with multiple consumers and publishers.


4. Yes this will be a performance limitation. The throughput get reasonably low when publishing/retrieving messages in multi-threaded environment. Even though LevelDB is capable of providing higher throughput than RDBMS even in a multi-threaded environment according to the test results, that can be a bottleneck in concurrent access of DB. Main purpose of this PoC is actually develop a generic key schema, so that we can switch between and select the optimal file based store for the message broker.

5. LevelDB does not have an inbuilt transaction support. Therefore transactions should implemented as a external layer within the application. Currently I am working on this and exploring how the transactions are implemented in ActiveMQ LevelDB store. [4] I will post a separate thread on LevelDB transactions.

Maybe before implementing a transaction layer, we should do a proper performance test and decide on the path forward.

WDYT?


On Tue, Aug 15, 2017 at 11:21 AM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,
  1. How are we going to support HA deployment with LevelDB? Are we going to use a network file system or replicate data?
  2. If we wanted to get a set of message matching a given queue ID, do we have to traverse all messages to get that? In RDBMS this is easier to do with a where clause.
  3. What happens if we insert data while traversing?
  4. It seems "only a single process (possibly multi-threaded) can access a particular database at a time"[1] in LevelDB. Will this be a bottleneck when we need to access the DB concurrently?
  5. How are the transactions handled in LevelDB? When implementing distributed transactions feature we required row level locking instead of table level locking. Does LevelDB support that?

On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706





--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: +94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Hasitha Abeykoon
Senior Software EngineerWSO2, Inc.; http://wso2.com


_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Wishmitha Mendis
Hi all,

The key schema for LevelDB store was updated due to following reasons.

  1. Reduce data replication

  2. Minimize the lookup time for iterators when retrieving data


When updating the schema lexicographically ordered storage mechanism of LevelDB was taken into consideration.


Updated Key Schema :


Key

Value

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT

Message content chunk

MESSAGE.$message_id.DESTINATION_NAME

Name of the queue/topic where the message is stored

MESSAGE.$message_id.DLC_STATUS

“1” if the message is in dead letter channel, else “0”

DESTINATION.MESSAGE_COUNT.$destination_name

Message count of the queue/topic

DESTINATION.$destination_name.MESSAGE_METADATA.$message_id

Metadata of the message which is stored in the queue/topic.

DESTINATION.$destination_name.MESSAGE_EXPIRATION_TIME.$message_id

Expiration time of the message which is stored in the queue/topic.


Comparison :


When compared to the previous schema, this schema has less data repetition. Previously, the message metadata and expiration time were stored both under the message and the destination, whereas in this schema metadata and expiration time are stored only under the destination.


Attributes like QUEUE_ID, DLC_QUEUE_ID were removed from the schema, as all the queues/topics are guaranteed to have a unique name.


In the previous key schema, metadata and expiration time of a message in a destination were stored successively.


Screenshot from 2017-11-10 10-58-12.png


With this schema, when an iterator looks up for all message metadata in a destination, it will have to traverse through all the keys including the keys related to expiration time as well. This lookup time can be reduced by separating expiration time and message metadata as follows.

Screenshot from 2017-11-10 11-06-40.png

Now the iterator does not have to traverse through expiration time related keys as they are separated from the message metadata related keys. This is used in the updated schema. Hence the lookup time for both metadata and expiration time will be halved compared to the previous schema.


As the total number of keys per message is reduced in this schema, publisher rates will be increased too.


Dead Letter Channel :


Dead letter channel is considered as a destination(queue) where messages will be moved to it, once the maximum redelivery attempts are reached. The DLC_STATUS of the message will be updated from "0" to “1”, once the message is moved to the dead letter channel.


On Wed, Aug 16, 2017 at 5:24 PM, Hasitha Hiranya <[hidden email]> wrote:
Hi Asanka and all,

On Wed, Aug 16, 2017 at 12:08 PM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,

On Tue, Aug 15, 2017 at 5:34 PM, Wishmitha Mendis <[hidden email]> wrote:
Hi Asanka,

1. We can initially use a Network File System as you mentioned for HA. However data replication in LevelDB is used in ActiveMQ replicated store. [1]

Then It is better to run the performance test with a NFS to really compare the results.

+1 for this. We have seen ActiveMQ also deliver low performance when we do this.
For distributed brokering scenarios, how ActiveMQ does it is, using broker-to-broker communication [1]. Each broker node has its own file based storage system, and message is routed looking at where the real consumer is.



2. Yes, the iterator should traverse all the related keys to get message data. This is why the key schema is designed in a such way that all the messages in a queue are stored successively to reduce the traversing time. And as you said it is much more complex than the RDBMS as the data cannot be retrieved by simply executing a query. However, LevelDB can still provide much faster data retrieval rates than RDBMS due to its high performances. Hence, even though the data retrieving operation is complex, it is not a much of an overhead when it comes to overall performances.

What happens if we have lot of messages for a queue/queues which is stored before the interested queue. Shouldn't we traverse until we find the interested queue. If my understanding is correct that will result in consuming a considerable amount of resources (CPU, bancdwith, etc). RDBMS get around this by maintaining indexes. Do we have something similar in leveldb?


(Additional : Most of the RDBMS engines use file based stores underneath. As an example, LevelDB is used as a database engine in MariaDB. [2] Hence, even when executing a query in RDBMS, these kind of traversing operations may occur underneath.)

3. Data cannot be inserted while traversing. Actually traversing through the keys is done by an iterator which should be eventually closed after the operation is completed. A sample code is represented below. [3]

DBIterator iterator = db.iterator();
try {
  for(iterator.seekToFirst(); iterator.hasNext(); iterator.next()) {
    String key = asString(iterator.peekNext().getKey());
    String value = asString(iterator.peekNext().getValue());
    System.out.println(key+" = "+value);
  }
} finally {
  // Make sure you close the iterator to avoid resource leaks.
  iterator.close();
}
These iterators are mainly used in methods such as getMetaDataList() and deleteMessages() in the implementation. The iterator should be closed in those methods, as displayed in the above code.

Isn't that a bottleneck when there are concurrent consumers and publishers? Data writing threads will have to wait until the data reading thread is done which can result in lower performance numbers when there are multiple queues with multiple consumers and publishers.


4. Yes this will be a performance limitation. The throughput get reasonably low when publishing/retrieving messages in multi-threaded environment. Even though LevelDB is capable of providing higher throughput than RDBMS even in a multi-threaded environment according to the test results, that can be a bottleneck in concurrent access of DB. Main purpose of this PoC is actually develop a generic key schema, so that we can switch between and select the optimal file based store for the message broker.

5. LevelDB does not have an inbuilt transaction support. Therefore transactions should implemented as a external layer within the application. Currently I am working on this and exploring how the transactions are implemented in ActiveMQ LevelDB store. [4] I will post a separate thread on LevelDB transactions.

Maybe before implementing a transaction layer, we should do a proper performance test and decide on the path forward.

WDYT?


On Tue, Aug 15, 2017 at 11:21 AM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,
  1. How are we going to support HA deployment with LevelDB? Are we going to use a network file system or replicate data?
  2. If we wanted to get a set of message matching a given queue ID, do we have to traverse all messages to get that? In RDBMS this is easier to do with a where clause.
  3. What happens if we insert data while traversing?
  4. It seems "only a single process (possibly multi-threaded) can access a particular database at a time"[1] in LevelDB. Will this be a bottleneck when we need to access the DB concurrently?
  5. How are the transactions handled in LevelDB? When implementing distributed transactions feature we required row level locking instead of table level locking. Does LevelDB support that?

On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni



Best Regards,

--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture






_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : <a href="tel:+94%2077%20757%207706" value="+94777577706" target="_blank">+94 777577706





--
Asanka Abeyweera
Senior Software Engineer
WSO2 Inc.

Phone: <a href="tel:+94%2071%20222%208648" value="+94712228648" target="_blank">+94 712228648



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture




--
Hasitha Abeykoon
Senior Software EngineerWSO2, Inc.; http://wso2.com




--
Wishmitha Mendis
Intern - Software Engineering
WSO2

Mobile : +94 777577706



_______________________________________________
Architecture mailing list
[hidden email]
https://mail.wso2.org/cgi-bin/mailman/listinfo/architecture
Reply | Threaded
Open this post in threaded view
|

Re: Proposed Key Schema for LevelDB Store of Message Broker

Wishmitha Mendis

Hi all, A File-Based DTX store was implemented using LevelDB to store distributed transaction related data. As XA transaction (two-phase commit) is used to handle the distributed transaction in MB, the related xid along with node id and branch id should be stored. Each transaction consists of message enqueue/dequeue (or both) operations. In the prepare phase of the transaction, metadata and the content of the messages which should be enqueued/dequeued have to be stored temporarily. When the transaction is in the commit phase, enqueue/dequeue operations of the transaction should be committed and temporary records during the prepare phase should be deleted. LevelDB WriteBatch[1] was used to implement these operations.


Following is the key schema for the DTX Store. These keys are defined to hold the related data temporary in the prepare phase of the transaction.


Key Schema :

Key

Value

DTX_ENTRY : $xid: $node_id : BRANCH_ID

Branch ID

DTX_ENTRY : $xid : $node_id : FORMAT_CODE

Format code

DTX_ENTRY : $xid : $node_id : GLOBAL_ID

Global ID

DTX_ENQUEUE : $xid : MESSAGE_METADATA : $message_id

Metadata of the message which should be enqueued

DTX_ENQUEUE : $xid : MESSAGE_CONTENT : $message_id : $offset

Content chunk of the message which should be enqueued

DTX_DEQUEUE : $xid : MESSAGE_METADATA : $message_id

Metadata of the message which should be dequeued

DTX_DEQUEUE : $xid :  MESSAGE_CONTENT : $message_id : $offset

Content chunk of the message which should be dequeued

DTX_DEQUEUE : $xid : DESTINATION_NAME : $message_id

Destination of the message which should be dequeued


Implementation :


The implementation of the file based DTX Store is done by implementing methods in DtxStore interface.[2]


[1]https://github.com/google/leveldb/blob/master/doc/index.md#atomic-updates

[2] Pull Request :  https://github.com/wso2/andes/pull/944/files

Best Regards,

On Fri, Nov 10, 2017 at 11:53 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi all,

The key schema for LevelDB store was updated due to following reasons.

  1. Reduce data replication

  2. Minimize the lookup time for iterators when retrieving data


When updating the schema lexicographically ordered storage mechanism of LevelDB was taken into consideration.


Updated Key Schema :


Key

Value

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT

Message content chunk

MESSAGE.$message_id.DESTINATION_NAME

Name of the queue/topic where the message is stored

MESSAGE.$message_id.DLC_STATUS

“1” if the message is in dead letter channel, else “0”

DESTINATION.MESSAGE_COUNT.$destination_name

Message count of the queue/topic

DESTINATION.$destination_name.MESSAGE_METADATA.$message_id

Metadata of the message which is stored in the queue/topic.

DESTINATION.$destination_name.MESSAGE_EXPIRATION_TIME.$message_id

Expiration time of the message which is stored in the queue/topic.


Comparison :


When compared to the previous schema, this schema has less data repetition. Previously, the message metadata and expiration time were stored both under the message and the destination, whereas in this schema metadata and expiration time are stored only under the destination.


Attributes like QUEUE_ID, DLC_QUEUE_ID were removed from the schema, as all the queues/topics are guaranteed to have a unique name.


In the previous key schema, metadata and expiration time of a message in a destination were stored successively.


Screenshot from 2017-11-10 10-58-12.png


With this schema, when an iterator looks up for all message metadata in a destination, it will have to traverse through all the keys including the keys related to expiration time as well. This lookup time can be reduced by separating expiration time and message metadata as follows.

Screenshot from 2017-11-10 11-06-40.png

Now the iterator does not have to traverse through expiration time related keys as they are separated from the message metadata related keys. This is used in the updated schema. Hence the lookup time for both metadata and expiration time will be halved compared to the previous schema.


As the total number of keys per message is reduced in this schema, publisher rates will be increased too.


Dead Letter Channel :


Dead letter channel is considered as a destination(queue) where messages will be moved to it, once the maximum redelivery attempts are reached. The DLC_STATUS of the message will be updated from "0" to “1”, once the message is moved to the dead letter channel.


On Wed, Aug 16, 2017 at 5:24 PM, Hasitha Hiranya <[hidden email]> wrote:
Hi Asanka and all,

On Wed, Aug 16, 2017 at 12:08 PM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,

On Tue, Aug 15, 2017 at 5:34 PM, Wishmitha Mendis <[hidden email]> wrote:
Hi Asanka,

1. We can initially use a Network File System as you mentioned for HA. However data replication in LevelDB is used in ActiveMQ replicated store. [1]

Then It is better to run the performance test with a NFS to really compare the results.

+1 for this. We have seen ActiveMQ also deliver low performance when we do this.
For distributed brokering scenarios, how ActiveMQ does it is, using broker-to-broker communication [1]. Each broker node has its own file based storage system, and message is routed looking at where the real consumer is.



2. Yes, the iterator should traverse all the related keys to get message data. This is why the key schema is designed in a such way that all the messages in a queue are stored successively to reduce the traversing time. And as you said it is much more complex than the RDBMS as the data cannot be retrieved by simply executing a query. However, LevelDB can still provide much faster data retrieval rates than RDBMS due to its high performances. Hence, even though the data retrieving operation is complex, it is not a much of an overhead when it comes to overall performances.

What happens if we have lot of messages for a queue/queues which is stored before the interested queue. Shouldn't we traverse until we find the interested queue. If my understanding is correct that will result in consuming a considerable amount of resources (CPU, bancdwith, etc). RDBMS get around this by maintaining indexes. Do we have something similar in leveldb?


(Additional : Most of the RDBMS engines use file based stores underneath. As an example, LevelDB is used as a database engine in MariaDB. [2] Hence, even when executing a query in RDBMS, these kind of traversing operations may occur underneath.)

3. Data cannot be inserted while traversing. Actually traversing through the keys is done by an iterator which should be eventually closed after the operation is completed. A sample code is represented below. [3]

DBIterator iterator = db.iterator();
try {
  for(iterator.seekToFirst(); iterator.hasNext(); iterator.next()) {
    String key = asString(iterator.peekNext().getKey());
    String value = asString(iterator.peekNext().getValue());
    System.out.println(key+" = "+value);
  }
} finally {
  // Make sure you close the iterator to avoid resource leaks.
  iterator.close();
}
These iterators are mainly used in methods such as getMetaDataList() and deleteMessages() in the implementation. The iterator should be closed in those methods, as displayed in the above code.

Isn't that a bottleneck when there are concurrent consumers and publishers? Data writing threads will have to wait until the data reading thread is done which can result in lower performance numbers when there are multiple queues with multiple consumers and publishers.


4. Yes this will be a performance limitation. The throughput get reasonably low when publishing/retrieving messages in multi-threaded environment. Even though LevelDB is capable of providing higher throughput than RDBMS even in a multi-threaded environment according to the test results, that can be a bottleneck in concurrent access of DB. Main purpose of this PoC is actually develop a generic key schema, so that we can switch between and select the optimal file based store for the message broker.

5. LevelDB does not have an inbuilt transaction support. Therefore transactions should implemented as a external layer within the application. Currently I am working on this and exploring how the transactions are implemented in ActiveMQ LevelDB store. [4] I will post a separate thread on LevelDB transactions.

Maybe before implementing a transaction layer, we should do a proper performance test and decide on the path forward.

WDYT?


On Tue, Aug 15, 2017 at 11:21 AM, Asanka Abeyweera <[hidden email]> wrote:
Hi Wishmitha,
  1. How are we going to support HA deployment with LevelDB? Are we going to use a network file system or replicate data?
  2. If we wanted to get a set of message matching a given queue ID, do we have to traverse all messages to get that? In RDBMS this is easier to do with a where clause.
  3. What happens if we insert data while traversing?
  4. It seems "only a single process (possibly multi-threaded) can access a particular database at a time"[1] in LevelDB. Will this be a bottleneck when we need to access the DB concurrently?
  5. How are the transactions handled in LevelDB? When implementing distributed transactions feature we required row level locking instead of table level locking. Does LevelDB support that?

On Tue, Aug 15, 2017 at 10:47 AM, Wishmitha Mendis <[hidden email]> wrote:
Hi Sumedha,

The Java library for LevelDB (leveldbjni) creates the database as follows as mentioned in the docs. [1]

Options options = new Options();
DB db = factory.open(new File("example"), options);
This will create the database in a directory on a given path. And in the library docs, it is mentioned that the library supports several platforms if not specifically configured. Therefore using this library does not require to ship LevelDB and it also won't take away platform agnostic installation capability of MB. However the implementation is currently only tested on Linux, I will test it on Windows and other platforms and let you know.

When considering the LevelDB architecture, it is already used as a broker store in ActiveMQ. [2] [3] This proves that LevelDB has the architectural capability to efficiently insert and delete messages in a broker.

[1] https://github.com/fusesource/leveldbjni
[2] http://activemq.apache.org/leveldb-store.html
[3] https://github.com/apache/activemq/tree/master/activemq-leveldb-store

Best Regards,

On Tue, Aug 15, 2017 at 2:29 AM, Sumedha Rubasinghe <[hidden email]> wrote:
Hi Wishmitha,
Would leveldb architecture be efficient for a message broker where removing delivered messages is very frequent?

This requires WSO2 Message Broker to ship leveldb. leveldb (https://github.com/google/leveldb) has native distributions for platforms. AFAIC this will take away platform agnostic installation capability of MB.



On Tue, Aug 15, 2017 at 2:20 AM, Wishmitha Mendis <[hidden email]> wrote:

Hi all,


I am working on a project to replace the current RDBMS based database of the message broker store with a file based database system. Currently the implementation is carried out in LevelDB which is a key-value based data store. The following is an explanation of suggested key schema for the data store with related design decisions.


Overview :


LevelDB is a key value based database where a value can be stored under a certain unique key. This key-value mapping is one directional which means a value only can be retrieved by accessing corresponding key. One of the main features in LevelDB is that it stores keys in a lexicographically (alphabetically) sorted order. All the keys and values are stored in byte array format in the database store which should be accordingly converted to string format within the application.


For this LevelDB store implementation leveldbjni-1.8[1] is used which provides a Java based API for LevelDB by providing following main functionalities.


  1. put(key,value) : stores given value under the provided key

  2. get(key) : returns corresponding value to the key

  3. delete(key) : deletes given key

  4. batch() : provides atomicity for the operations

  5. iterator() : traverse through the stored keys


When designing the key schema in Level DB the following factors are mainly considered.


  1. Lexicographical order of the stored keys

  2. Traversing through the keys

  3. Data organization


Key Schema :


The key schema implementation was carried out for following tables of the current RDBMS database.

Screenshot from 2017-08-14 01-13-33.png

The key schema is mainly designed by analyzing implemented queries for data retrieval and inserting in the RDBMS. The key schema for above three tables is represented below table.



Screenshot from 2017-08-15 02-11-24.png

Key : Value

Purpose

MESSAGE.$message_id.QUEUE_ID : queue_id

Stores queue id of the message.

MESSAGE.$message_id.DLC_QUEUE_ID : dlc_queue_id

Stores dlc queue id of the message.

MESSAGE.$message_id.MESSAGE_METADATA : message_metadata

Stores metadata of the message.

MESSAGE.$message_id.$content_offset.MESSAGE_CONTENT : message_content

Stores message content for a given message offset of the message.

QUEUE.$queue_id.QUEUE_NAME : queue_name

Stores name of the queue under the id.

QUEUE.$queue_name.QUEUE_ID : queue_id

Stores id of the queue under the name.

QUEUE.$queue_name.message_id. MESSAGE_METADATA : message_metadata

Stores metadata of the messages which belongs to the queue.

LAST_MESSAGE_ID

Stores last message id.

LAST_QUEUE_ID

Stores last queue id.


As it can be seen some data repetition is higher when using this schema. That is mainly due to one directional key-value mapping of LevelDB. As an example two keys (QUEUE.$queue_id.QUEUE_NAME , QUEUE.$queue_name.QUEUE_ID) are required to build the bidirectional relation (get queue name given queue id and get queue id given queue name) between queue name and the queue id. As LevelDB has better writing performances than RDBMS data repetition may not be an much of an overhead in inserting data. Moreover batch operations can be used in multiple insertions.


The main purpose of using of prefixes like MESSAGE and QUEUE in keys is to organize them properly. As LevelDB stores keys lexicographically these prefixes will make sure that message related and queue related keys are stored separately as displayed below. The following shows the keys of the LevelDB store after publishing a JMS message to the broker. It can be clearly seen that the keys are stored in lexicographical order.


Screenshot from 2017-08-14 19-57-13.png


Organize keys in such a manner also improves the efficiency of traversing the keys using iterators when retrieving and deleting data. As displayed in the diagram below, iterators traverse by starting from the first stored key in the store. When iterator head reaches a key it can either move to the next key or previous key. (similar to double linked list) Hence storing related keys successively improves the efficiency of traversing when retrieving and deleting data by reducing the seeking time.



Screenshot from 2017-08-15 02-11-40.png


Basically these are the factors and decisions which have been taken in implementing this key schema. And this schema should be extended to provide functionalities like storing message expiration data etc. It would be great to to have a feedback on the proposed schema specially regarding how to reduce data repetition and improve efficiency furthermore.


[1] https://github.com/fusesource/leveldbjni
